Suction and delivery hose for food, cosmetic and pharmaceutical products, chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids
DESCRIPTION

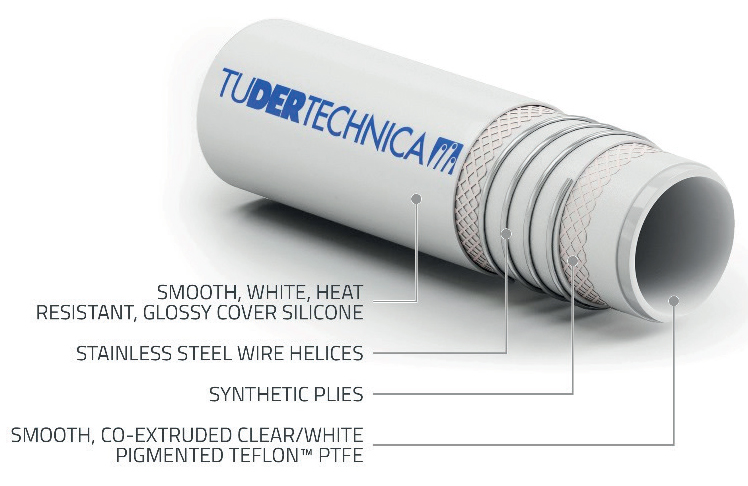

- Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
- Reinforcement : synthetic plies, stainless steel wire helices, on request a/s wires to discharge static electricity
- Cover : smooth, silicone, white. Meets FDA CFR 21 PART 177.2600, BfR Recommendation XV, European Reglement 1935/2004/CE. Heat, abrasion, ageing and ozone resistant, glossy cover
- Marking : TUDERTECHNICA TUFLUOR® PTFE SIL
TECHNICAL CHARACTERISTICS
- Temperature range :-40°C / +150°C ( -40°F / +302°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
- Norm : ISO 1307 for dimensional tolerances
| Inside diameter | Outside diameter | Vacuum | Length | Working pressure | Burst pressure | Appr. weight | Bending radius | ||||||||
| [mm] | [in] | [mm] | [in] | [bar] | [psi] | [mt] | [ft] | [bar] | [psi] | [bar] | [psi] | [kg/mt] | [lbs/ft] | [mm] | [in] |
| 13 | 0,50 | 24 | 0,94 | 0,9 | 13 | 10 | 32,5 | 10 | 150 | 40 | 600 | 0,47 | 0,31 | 45 | 1,77 |
| 19 | 0,75 | 30 | 1,18 | 0,9 | 13 | 10 | 32,5 | 10 | 150 | 40 | 600 | 0,61 | 0,41 | 70 | 2,76 |
| 25 | 1,00 | 36 | 1,42 | 0,9 | 13 | 10 | 32,5 | 10 | 150 | 40 | 600 | 0,76 | 0,51 | 90 | 3,54 |
| 32 | 1,25 | 43 | 1,69 | 0,9 | 13 | 10 | 32,5 | 8 | 120 | 32 | 480 | 0,93 | 0,62 | 120 | 4,72 |
| 38 | 1,50 | 50 | 1,97 | 0,9 | 13 | 10 | 32,5 | 7 | 105 | 28 | 420 | 1,26 | 0,84 | 140 | 5,51 |
| 50 | 1,97 | 62 | 2,44 | 0,9 | 13 | 10 | 32,5 | 7 | 105 | 28 | 420 | 1,60 | 1,07 | 180 | 7,09 |
| 63,5 | 2,50 | 79,5 | 3,13 | 0,9 | 13 | 10 | 32,5 | 6 | 90 | 24 | 360 | 2,69 | 1,80 | 320 | 12,60 |
| 75 | 2,95 | 91 | 3,58 | 0,9 | 13 | 10 | 32,5 | 5 | 75 | 20 | 300 | 3,24 | 2,17 | 380 | 14,96 |
| 100 | 3,94 | 117 | 4,61 | 0,9 | 13 | 10 | 32,5 | 4 | 60 | 16 | 240 | 5,06 | 3,39 | 580 | 22,84 |
Suction and delivery hose suitable for cosmetic, pharmaceutical and food products. Meets migration test according to BfR Recommendation XV & XXI Cat. 2. Not intended for use as an implant material. Not suitable for blood or human fluids.
DESCRIPTION

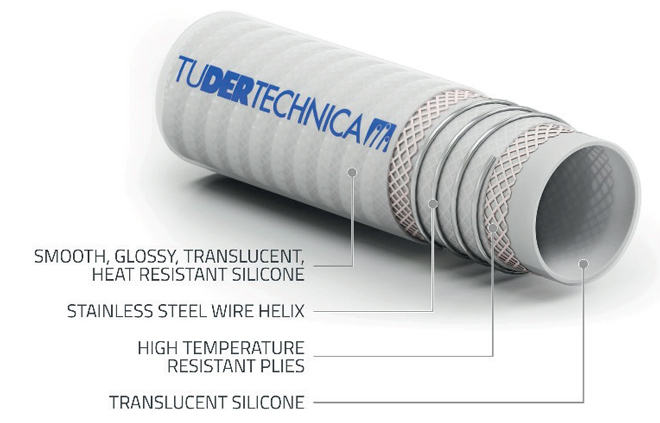

- Tube : silicone, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA CFR 21 PART 177.2600, USP XXXII class VI requirements, European Pharmacopoeia 3.1.9 Ed. VII 2011, ISO 10993 Sections 5,10,11:2009, BfR Recommendation XV & XXI Cat. 2, European Reglement 1935/2004/CE, DM 21/03/1973 e seguenti, Japan Ministry of Health and Welfare Notice No.370,1959, No.201,2006 and revision 2012, 3A Sanitary Standard Class II
- Reinforcement : high temperature resistant plies, stainless steel wire helix
- Cover : smooth, silicone, translucent, heat, ageing, ozone and abrasion resistant, glossy cover
- Marking : TUDERTECHNICA TUSIL® BRIGHT
TECHNICAL CHARACTERISTICS
- Temperature range : -60°C / +200°C ( -76°F / +392°F )
- Norm : ISO 1307 for dimensional tolerances
| Inside diameter | Outside diameter | Vacuum | Working pressure | Burst pressure | Appr. weight | Bending radius | |||||||||
[mm] |
[in] |
[mm] |
[in] |
[bar] |
[psi] |
[bar] |
[psi] |
[bar] |
[psi] |
[kg/mt] |
[lbs/ft] |
[mm] |
[in] |
||
13 |
0,50 |
24 |
0,94 |
0,9 |
13 |
15 |
225 |
45 |
675 |
0,46 |
0,31 |
60 |
2,36 |
||
16 |
0,63 |
27 |
1,06 |
0,9 |
13 |
14 |
210 |
42 |
630 |
0,53 |
0,36 |
70 |
2,76 |
||
19 |
0,75 |
30 |
1,18 |
0,9 |
13 |
13 |
195 |
39 |
585 |
0,60 |
0,40 |
80 |
3,15 |
||
25 |
1,00 |
36 |
1,42 |
0,9 |
13 |
10 |
150 |
30 |
450 |
0,73 |
0,49 |
100 |
3,94 |
||
32 |
1,25 |
43 |
1,69 |
0,9 |
13 |
8 |
120 |
24 |
360 |
0,89 |
0,60 |
130 |
5,12 |
||
38 |
1,50 |
51 |
2,00 |
0,9 |
13 |
7 |
105 |
21 |
315 |
1,21 |
0,81 |
155 |
6,10 |
||
51 |
2,00 |
64 |
2,52 |
0,9 |
13 |
6 |
90 |
18 |
270 |
1,56 |
1,05 |
210 |
8,27 |
||
63,5 |
2,50 |
78,5 |
3,09 |
0,9 |
13 |
5 |
75 |
15 |
225 |
2,32 |
1,55 |
260 |
10,24 |
||
76 |
3,00 |
91 |
3,58 |
0,9 |
13 |
4 |
60 |
12 |
180 |
2,72 |
1,82 |
310 |
12,20 |
||
102 |
4,00 |
117 |
4,61 |
0,9 |
13 |
3 |
45 |
9 |
135 |
3,55 |
2,38 |
420 |
16,54 |
||
Delivery hose suitable for cosmetic, pharmaceutical and food products. Meets migration test according to BfR Recommendation XV & XXI Cat. 2. Not intended for use as an implant material. Not suitable for blood or human fluids.
DESCRIPTION

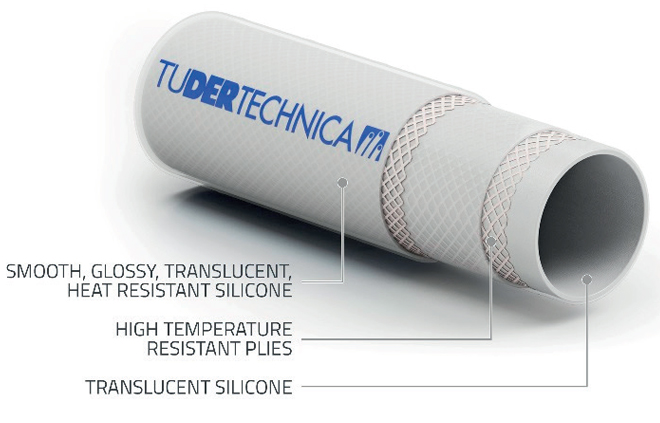

- Tube : silicone, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA CFR 21 PART 177.2600, USP XXXII class VI requirements, European Pharmacopoeia 3.1.9 Ed. VII 2011, ISO 10993 Sections 5,10,11:2009, BfR Recommendation XV & XXI Cat. 2, European Reglement 1935/2004/CE, DM 21/03/1973 e seguenti, Japan Ministry of Health and Welfare Notice No.370,1959, No.201,2006 and revision 2012, 3A Sanitary Standard Class II
- Reinforcement : high temperature resistant plies
- Cover : smooth, silicone, translucent, heat, ageing, ozone and abrasion resistant, glossy cover
- Marking : TUDERTECHNICA TUSIL® BRIGHT
TECHNICAL CHARACTERISTICS
- Temperature range : -60°C / +200°C ( -76°F / +392°F )
- Norm : ISO 1307 for dimensional tolerances
| Inside diameter | Outside diameter | Vacuum | Working pressure | Burst pressure | Appr. weight | Bending radius | |||||||
[mm] |
[in] |
[mm] |
[in] |
[bar] |
[psi] |
[bar] |
[psi] |
[bar] |
[psi] |
[kg/mt] |
[lbs/ft] |
[mm] |
[in] |
10 |
0,39 |
22 |
0,87 |
- |
- |
16 |
250 |
48 |
750 |
0,35 |
0,23 |
- |
- |
13 |
0,50 |
25 |
1,00 |
- |
- |
15 |
225 |
45 |
675 |
0,41 |
0,27 |
- |
- |
16 |
0,63 |
28 |
1,10 |
- |
- |
14 |
210 |
42 |
630 |
0,48 |
0,32 |
- |
- |
19 |
0,75 |
31 |
1,22 |
- |
- |
13 |
195 |
39 |
585 |
0,55 |
0,37 |
- |
- |
25 |
1,00 |
37 |
1,46 |
- |
- |
10 |
150 |
30 |
450 |
0,68 |
0,46 |
- |
- |
32 |
1,25 |
44 |
1,73 |
- |
- |
8 |
120 |
24 |
360 |
0,83 |
0,56 |
- |
- |
38 |
1,50 |
50 |
1,97 |
- |
- |
7 |
105 |
21 |
315 |
0,96 |
0,64 |
- |
- |
51 |
2,00 |
63 |
2,48 |
- |
- |
6 |
90 |
18 |
270 |
1,24 |
0,83 |
- |
- |
63,5 |
2,50 |
76,5 |
3,01 |
- |
- |
5 |
75 |
15 |
225 |
1,68 |
1,13 |
- |
- |
76 |
3,00 |
89 |
3,50 |
- |
- |
4 |
60 |
12 |
180 |
1,98 |
1,33 |
- |
- |
102 |
4,00 |
115 |
4,53 |
- |
- |
3 |
45 |
9 |
135 |
2,61 |
1,75 |
- |
- |
Suction and delivery hose suitable for cosmetic, pharmaceutical and food products. Not intended for use as an implant material. Not suitable for blood or human fluids.
DESCRIPTION

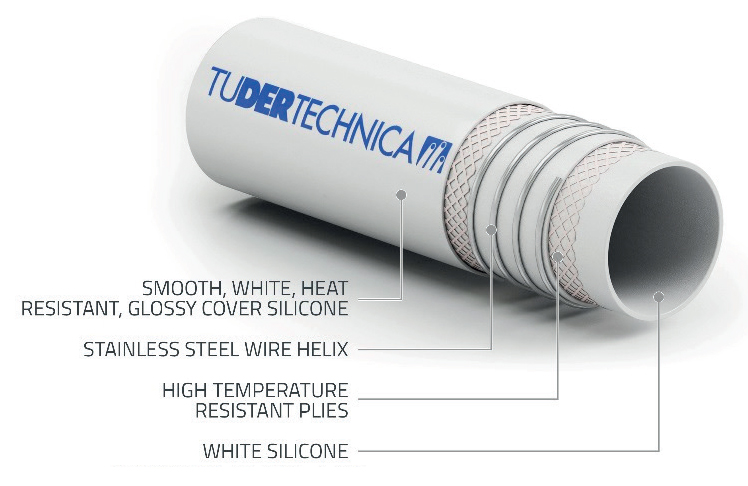

- Tube : silicone, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA CFR 21 PART 177.2600, USP XXXII class VI requirements, European Pharmacopoeia 3.1.9 Ed. VII 2011, ISO 10993 Sections 5,10,11:2009, BfR Recommendation XV & XXI Cat. 2, European Reglement 1935/2004/CE, DM 21/03/1973 e seguenti, Japan Ministry of Health and Welfare Notice No.370,1959, No.201,2006, 3A Sanitary Standard Class II
- Reinforcement : high temperature resistant plies, stainless steel wire helix
- Cover : smooth, silicone, white, heat, ageing, ozone and abrasion resistant, glossy cover
- Marking : TUDERTECHNICA TUSIL® PURE
TECHNICAL CHARACTERISTICS
- Temperature range : -60°C / +200°C ( -76°F / +392°F )
- Norm : ISO 1307 for dimensional tolerances
| Inside diameter | Outside diameter | Vacuum | Working pressure | Burst pressure | Appr. weight | Bending radius | |||||||
| [mm] | [in] | [mm] | [in] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [kg/mt] | [lbs/ft] | [mm] | [in] |
| 13 | 0,50 | 23 | 0,91 | 0,9 | 13 | 15 | 225 | 45 | 675 | 0,38 | 0,25 | 60 | 2,36 |
| 16 | 0,63 | 26 | 1,02 | 0,9 | 13 | 14 | 210 | 42 | 630 | 0,44 | 0,29 | 70 | 2,76 |
| 19 | 0,75 | 29 | 1,14 | 0,9 | 13 | 13 | 195 | 39 | 585 | 0,50 | 0,34 | 80 | 3,15 |
| 25 | 1,00 | 35 | 1,38 | 0,9 | 13 | 10 | 150 | 30 | 450 | 0,61 | 0,41 | 100 | 3,94 |
| 32 | 1,25 | 42 | 1,65 | 0,9 | 13 | 8 | 120 | 24 | 360 | 0,76 | 0,51 | 130 | 5,12 |
| 38 | 1,50 | 49 | 1,93 | 0,9 | 13 | 7 | 105 | 21 | 315 | 1,05 | 0,70 | 155 | 6,10 |
| 51 | 2,00 | 62 | 2,44 | 0,9 | 13 | 6 | 90 | 18 | 270 | 1,36 | 0,91 | 210 | 8,27 |
| 63,5 | 2,50 | 76,5 | 3,01 | 0,9 | 13 | 5 | 75 | 15 | 225 | 2,06 | 1,38 | 260 | 10,24 |
| 76 | 3,00 | 89 | 3,50 | 0,9 | 13 | 4 | 60 | 12 | 180 | 2,42 | 1,62 | 310 | 12,20 |
| 102 | 4,00 | 115 | 4,53 | 0,9 | 13 | 3 | 45 | 9 | 135 | 3,39 | 2,27 | 420 | 16,54 |
