Tuchem UPE Chips Pharmachem
Suction and delivery hose designed according to EN 12115 standards for chemical and pharmaceutical products.

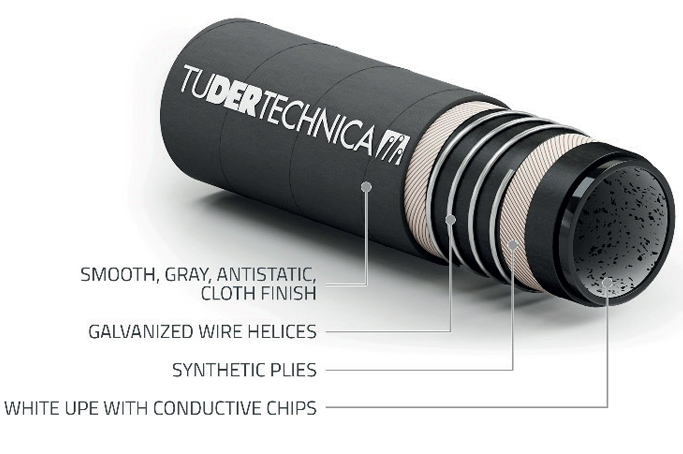

DESCRIPTION
- Tube : UPE, white with conductive chips, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
- Reinforcement : synthetic plies, galvanized wire helices, a/s wire to discharge static electricity
- Cover : smooth, gray, antistatic (R<109 Ω/m), abrasion, ageing, ozone and oil resistant, cloth finish
- Marking : white / blue tape TUDERTECHNICA TUCHEM® UPE CHIPS PHARMACHEM embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω Q/Y
TECHNICAL CHARACTERISTICS
- Temperature range : -35°C / +100°C ( -31°F / +212°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
- Electrical properties : type Ω according to norm EN 12115 (R<106 Ω)
- Norm : EN12115
| Inside diameter | Outside diameter | Vacuum | Working pressure | Burst pressure | Appr. weight | Bending radius | |||||||
| [mm] | [in] | [mm] | [in] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [kg/mt] | [lbs/ft] | [mm] | [in] |
| 19 | 0,75 | 31 | 1,22 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 0,75 | 0,50 | 115 | 4,53 |
| 25 | 1,00 | 37 | 1,46 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 0,92 | 0,62 | 155 | 6,10 |
| 32 | 1,25 | 44 | 1,73 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 1,10 | 0,74 | 200 | 7,87 |
| 38 | 1,50 | 51 | 2,00 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 1,39 | 0,93 | 240 | 9,45 |
| 50 | 1,97 | 66 | 2,60 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 2,30 | 1,54 | 330 | 12,99 |
| 51 | 2,00 | 67 | 2,64 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 2,33 | 1,56 | 330 | 12,99 |
| 63,5 | 2,50 | 79,5 | 3,13 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 3,09 | 2,07 | 415 | 16,34 |
| 75 | 2,95 | 91 | 3,58 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 3,58 | 2,40 | 500 | 19,69 |
| 76 | 3,00 | 92 | 3,62 | 0,9 | 13 | 16 | 250 | 64 | 1000 | 3,62 | 2,42 | 500 | 19,69 |
| 100 | 3,94 | 116 | 4,57 | 0,9 | 13 | 12 | 185 | 48 | 750 | 4,63 | 3,10 | 675 | 26,57 |
| 102 | 4,00 | 118 | 4,65 | 0,9 | 13 | 12 | 185 | 48 | 750 | 4,67 | 3,13 | 675 | 26,57 |
