Dairy Hoses

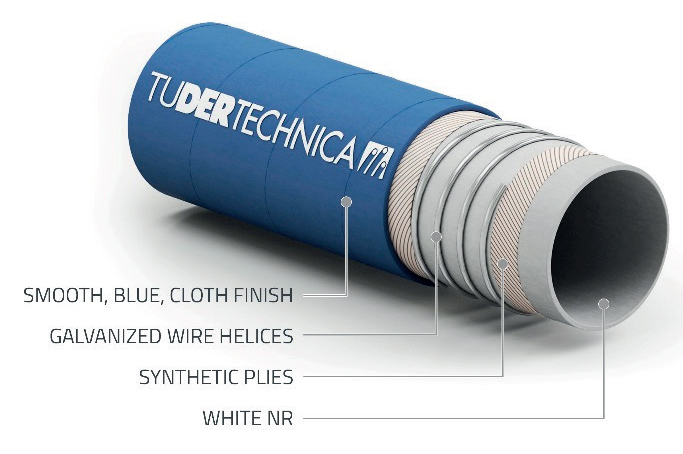

Milkflex


Light and flexible lorry collecting hose suitable for milk and milk byproducts.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA MILKFLEX®

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
Milkflex
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 36 1,42 0,9 13 6 90 18 270 0,72 0,48 75 2,95
32 1,25 43 1,69 0,9 13 6 90 18 270 0,88 0,59 95 3,74
38 1,50 50 1,97 0,9 13 6 90 18 270 1,20 0,80 115 4,53
51 2,00 63 2,48 0,9 13 6 90 18 270 1,54 1,03 150 5,91
63,5 2,50 75,5 2,97 0,9 13 6 90 18 270 1,98 1,33 190 7,48
76 3,00 90 3,54 0,9 13 6 90 18 270 2,76 1,85 230 9,06
102 4,00 116 4,57 0,9 13 6 90 18 270 3,78 2,53 300 11,81

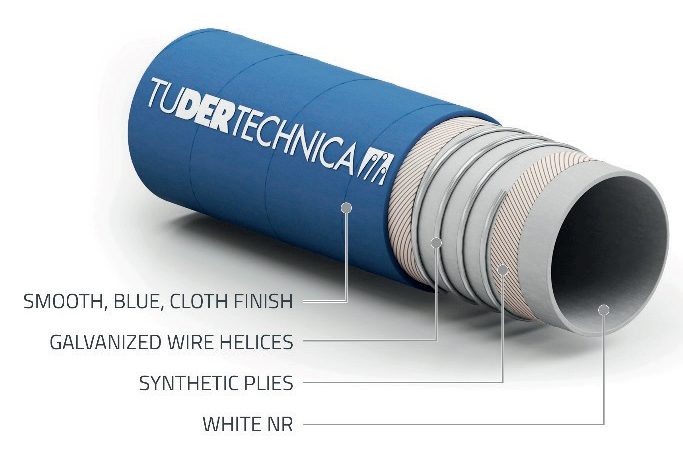

Milkflex Extra Light


milkflex-extra-light
request-quote

Very light and flexible lorry collecting hose suitable for milk and milk by-products.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA MILKFLEX® EXTRA LIGHT

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working Pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 49 1,93 0,9 13 6 90 18 270 1,07 0,72 115 4,53
51 2,00 62 2,44 0,9 13 6 90 18 270 1,37 0,92 150 5,91
63,5 2,50 74,5 2,93 0,9 13 6 90 18 270 1,74 1,17 190 7,48
76 3,00 88 3,46 0,9 13 6 90 18 270 2,44 1,63 230 9,06
102 4,00 116 4,57 0,9 13 6 90 18 270 3,43 2,30 300 11,81



Milkflex Plus


Light and flexible lorry collecting hose suitable for milk and milk byproducts with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA MILKFLEX® PLUS

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
Milkflex
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,81 0,54 75 2,95
32 1,25 44 1,73 0,9 13 10 150 30 450 0,99 0,66 95 3,74
38 1,50 50 1,97 0,9 13 10 150 30 450 1,27 0,85 115 4,53
51 2,00 63 2,48 0,9 13 10 150 30 450 1,64 1,10 150 5,91
63,5 2,50 75,5 2,97 0,9 13 10 150 30 450 2,07 1,39 190 7,48
76 3,00 90 3,54 0,9 13 10 150 30 450 2,76 1,85 230 9,06
102 4,00 117 4,61 0,9 13 9 135 27 405 4,07 2,73 300 11,81



Milkflex Crush Resistant


milkflex-crush-resistant
request-quote

Light and flexible lorry collecting hose suitable for milk and milk byproducts. Crush resistant.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, thermoplastic wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA MILKFLEX® CRUSH RESISTANT

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 52 2,05 0,7 10 6 90 18 270 1,15 0,77 130 5,12
51 2,00 65 2,56 0,7 10 6 90 18 270 1,45 0,97 185 7,28
63,5 2,50 77,5 3,05 0,7 10 6 90 18 270 1,80 1,21 240 9,45
76 3,00 92 3,62 0,7 10 6 90 18 270 2,40 1,61 300 11,81

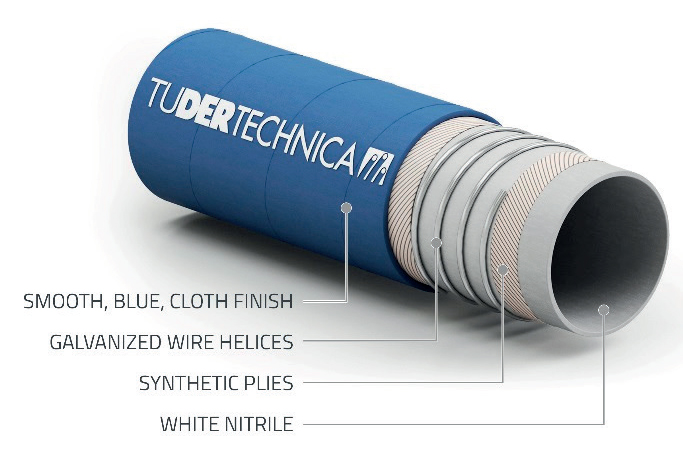

Milkflex Fat


Light and flexible lorry collecting hose suitable for fatty and not fatty food products.


DESCRIPTION
  • Tube : NBR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing, ozone and oil resistant, cloth finish
  • Marking : TUDERTECHNICA MILKFLEX® FAT

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
milkflex-fat
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 36 1,42 0,9 13 6 90 18 270 0,86 0,58 75 2,95
32 1,25 43 1,69 0,9 13 6 90 18 270 1,06 0,71 95 3,74
38 1,50 50 1,97 0,9 13 6 90 18 270 1,32 0,88 115 4,53
51 2,00 63 2,48 0,9 13 6 90 18 270 1,71 1,15 150 5,91
63,5 2,50 75,5 2,97 0,9 13 6 90 18 270 2,16 1,45 190 7,48
76 3,00 90 3,54 0,9 13 6 90 18 270 3,14 2,10 230 9,06
102 4,00 116 4,57 0,9 13 6 90 18 270 4,21 2,82 300 11,81

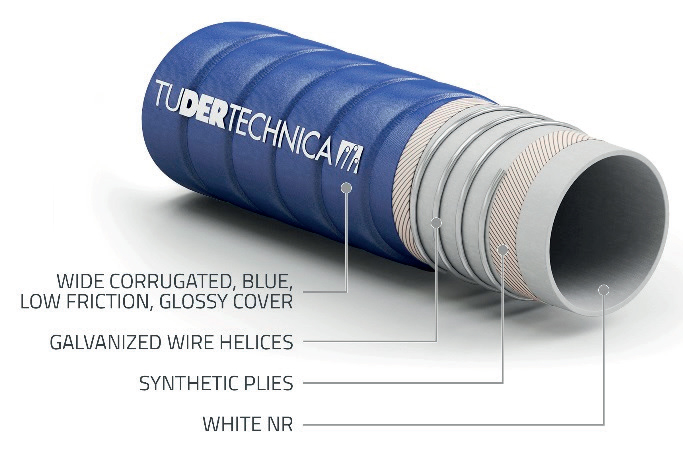

Glidetech Diary


glidetech-diary
request-quote

Extra flexible suction and delivery hose suitable for milk and milk byproducts.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, blue, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® DAIRY

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,82 0,55 70 2,76
38 1,50 51,5 2,03 0,9 13 10 150 30 450 1,23 0,82 80 3,15
51 2,00 66 2,60 0,9 13 10 150 30 450 1,90 1,27 100 3,94
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,30 1,54 130 5,12
76 3,00 92 3,62 0,9 13 10 150 30 450 2,90 1,94 150 5,91
102 4,00 118 4,65 0,9 13 10 150 30 450 3,78 2,53 250 9,84
