Fluoropolymer Hoses

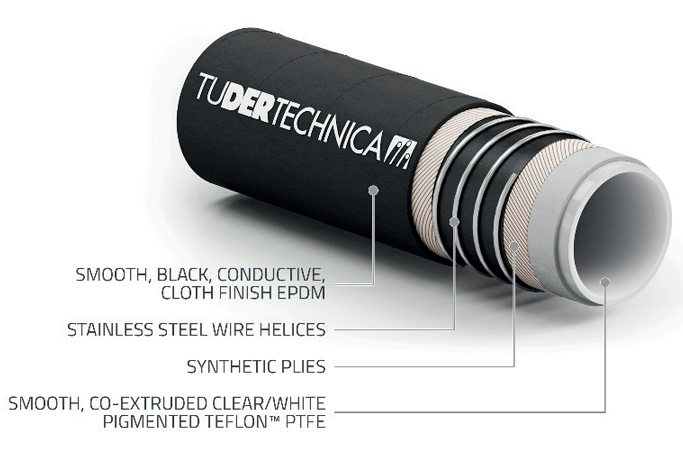

Tufluor PTFE Chem


Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.


DESCRIPTION
  • Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
  • Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
  • Norm : EN12115 - TRbF 131/2
tufluor-ptfe-chem
request-quote

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 16 250 64 1000 0,54 0,36 90 3,54
19 0,75 31 1,22 0,9 13 40 130 16 250 64 1000 0,70 0,47 130 5,12
25 1,00 37 1,46 0,9 13 40 130 16 250 64 1000 0,86 0,58 170 6,69
32 1,25 44 1,73 0,9 13 40 130 16 250 64 1000 1,18 0,79 215 8,46
38 1,50 51 2,00 0,9 13 40 130 16 250 64 1000 1,43 0,96 255 10,04
50 1,97 66 2,60 0,9 13 40 130 16 250 64 1000 2,08 1,39 330 12,99
63,5 2,50 79,5 3,13 0,9 13 20 65 16 250 64 1000 2,96 1,98 430 16,93
75 2,95 91 3,58 0,9 13 20 65 16 250 64 1000 3,43 2,30 510 20,08
100 3,94 116 4,57 0,9 13 20 65 12 185 48 750 4,60 3,08 675 26,57



Tufluor PTFE Chem Form


tufluor-ptfe-chem-form
request-quote

Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.


DESCRIPTION
  • Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
  • Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : red/white/blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 10 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
  • Norm : EN12115 - TRbF 131/2

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 10 150 40 600 0,49 0,33 55 2,17
19 0,75 31 1,22 0,9 13 40 130 10 150 40 600 0,64 0,43 75 2,95
25 1,00 37 1,46 0,9 13 40 130 10 150 40 600 0,79 0,53 95 3,74
32 1,25 44 1,73 0,9 13 40 130 10 150 40 600 0,90 0,60 115 4,53
38 1,50 51 2,00 0,9 13 40 130 10 150 40 600 1,22 0,82 140 5,51
50 1,97 66 2,60 0,9 13 40 130 10 150 40 600 1,95 1,31 190 7,48
63,5 2,50 79,5 3,13 0,9 13 20 65 10 150 40 600 2,54 1,70 245 9,65
75 2,95 91 3,58 0,9 13 20 65 10 150 40 600 2,95 1,97 330 12,99
100 3,94 116 4,57 0,9 13 20 65 10 150 40 600 3,82 2,56 475 18,70

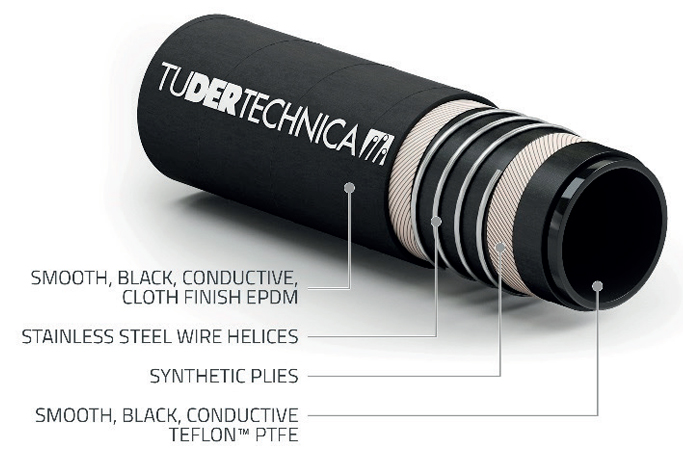

Tufluor PTFE Chem Full Conductive


Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).


DESCRIPTION
  • Tube : TEFLON™ PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXII class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wire to discharge static electricity
  • Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : red/white/blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115 - TRbF 131/2
tufluor-ptfe-chem-full-conductive
request-quote

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 16 250 64 1000 0,54 0,36 90 3,54
19 0,75 31 1,22 0,9 13 40 130 16 250 64 1000 0,70 0,47 130 5,12
25 1,00 37 1,46 0,9 13 40 130 16 250 64 1000 0,86 0,58 170 6,69
32 1,25 44 1,73 0,9 13 40 130 16 250 64 1000 1,18 0,79 215 8,46
38 1,50 51 2,00 0,9 13 40 130 16 250 64 1000 1,43 0,96 255 10,04
50 1,97 66 2,60 0,9 13 40 130 16 250 64 1000 2,08 1,39 330 12,99
63,5 2,50 79,5 3,13 0,9 13 20 65 16 250 64 1000 2,96 1,98 430 16,93
75 2,95 91 3,58 0,9 13 20 65 16 250 64 1000 3,43 2,30 510 20,08
100 3,94 116 4,57 0,9 13 20 65 12 185 48 750 4,60 3,08 675 26,57

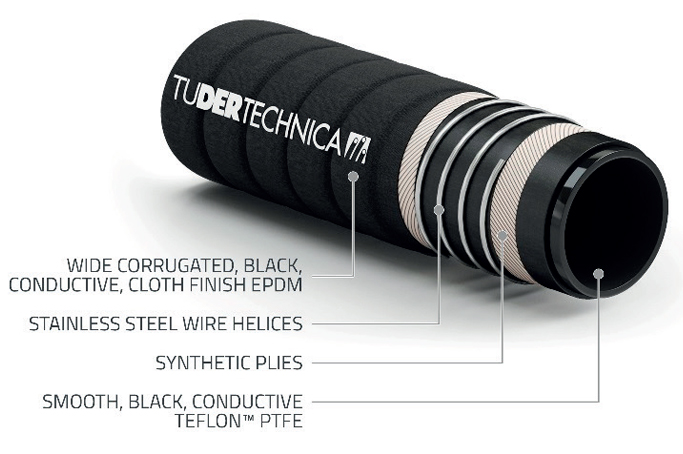

Tufluor PTFE Chem Full Conductive Form


tufluor-ptfe-chem-full-conductive-form
request-quote

Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.


DESCRIPTION
  • Tube : TEFLON™ PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXII class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wire to discharge static electricity
  • Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115 - TRbF 131/2

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 10 150 40 600 0,49 0,33 55 2,17
19 0,75 31 1,22 0,9 13 40 130 10 150 40 600 0,64 0,43 75 2,95
25 1,00 37 1,46 0,9 13 40 130 10 150 40 600 0,79 0,53 95 3,74
32 1,25 44 1,73 0,9 13 40 130 10 150 40 600 0,90 0,60 115 4,53
38 1,50 51 2,00 0,9 13 40 130 10 150 40 600 1,22 0,82 140 5,51
50 1,97 66 2,60 0,9 13 40 130 10 150 40 600 1,95 1,31 190 7,48
63,5 2,50 79,5 3,13 0,9 13 20 65 10 150 40 600 2,54 1,70 245 9,65
75 2,95 91 3,58 0,9 13 20 65 10 150 40 600 2,95 1,97 330 12,99
100 3,94 116 4,57 0,9 13 20 65 10 150 40 600 3,82 2,56 475 18,70

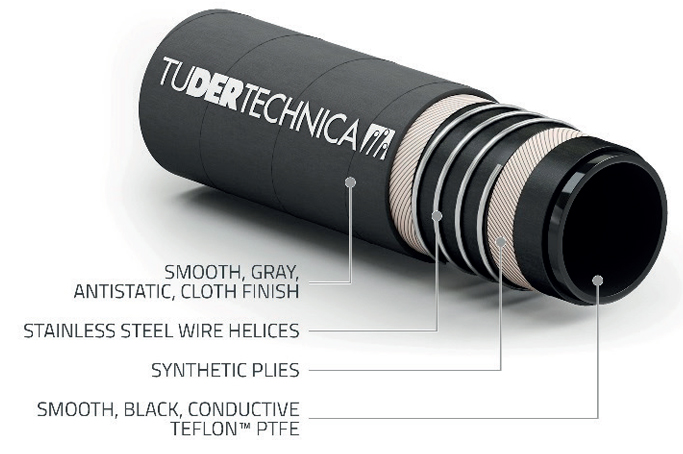

Tufluor PTFE Pharmachem


Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.


DESCRIPTION
  • Tube : TEFLON™ PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXII class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s wires to discharge static electricity
  • Cover : smooth, gray, antistatic (R<109 Ω/m), abrasion, ageing, ozone and oil resistant, cloth finish
  • Sterilization : refer to guidelines for cleaning and sanitizing on Tudertechnica website
  • Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE PHARMACHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
  • Norm : EN12115
tufluor-ptfe-pharmachem
request-quote

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 16 250 64 1000 0,54 0,36 90 3,54
19 0,75 31 1,22 0,9 13 40 130 16 250 64 1000 0,70 0,47 130 5,12
25 1,00 37 1,46 0,9 13 40 130 16 250 64 1000 0,86 0,58 170 6,69
32 1,25 44 1,73 0,9 13 40 130 16 250 64 1000 1,18 0,79 215 8,46
38 1,50 51 2,00 0,9 13 40 130 16 250 64 1000 1,43 0,96 255 10,04
50 1,97 66 2,60 0,9 13 40 130 16 250 64 1000 2,08 1,39 330 12,99
63,5 2,50 79,5 3,13 0,9 13 20 65 16 250 64 1000 2,96 1,98 430 16,93
75 2,95 91 3,58 0,9 13 20 65 16 250 64 1000 3,43 2,30 510 20,08
100 3,94 116 4,57 0,9 13 20 65 12 185 48 750 4,60 3,08 675 26,57
