Spiraltech Food Hoses

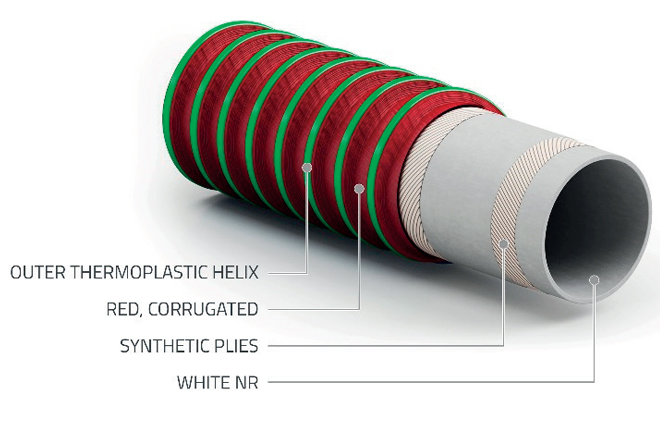

Spiraltech Nr


Light and flexible lorry collecting hose suitable for milk, milk byproducts, wine and non-fatty food products.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies
  • Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
spiraltech-nr
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 - - 0,9 13 10 150 30 450 1,21 0,81 80 3,15
51 2,00 - - 0,9 13 10 150 30 450 1,59 1,07 100 3,94
63,5 2,50 - - 0,8 11,5 10 150 30 450 1,93 1,29 130 5,12
76 3,00 - - 0,8 11,5 10 150 30 450 2,49 1,67 150 5,91
102 4,00 - - 0,7 10 10 150 30 450 3,26 2,18 200 7,87

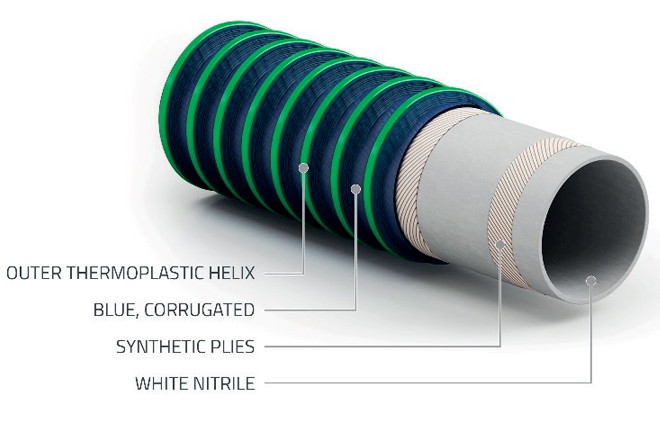

Spiraltech Nitrile


spiraltech-nitrile
request-quote

Light and flexible lorry collecting hose suitable for fatty and not fatty food products.


DESCRIPTION
  • Tube : NBR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies
  • Cover : corrugated, blue, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 - - 0,9 13 10 150 30 450 1,21 0,81 80 3,15
51 2,00 - - 0,9 13 10 150 30 450 1,62 1,09 100 3,94
63,5 2,50 - - 0,8 11,5 10 150 30 450 1,96 1,31 130 5,12
76 3,00 - - 0,8 11,5 10 150 30 450 2,37 1,59 150 5,91
102 4,00 - - 0,8 10 10 150 30 450 3,06 2,05 200 7,87

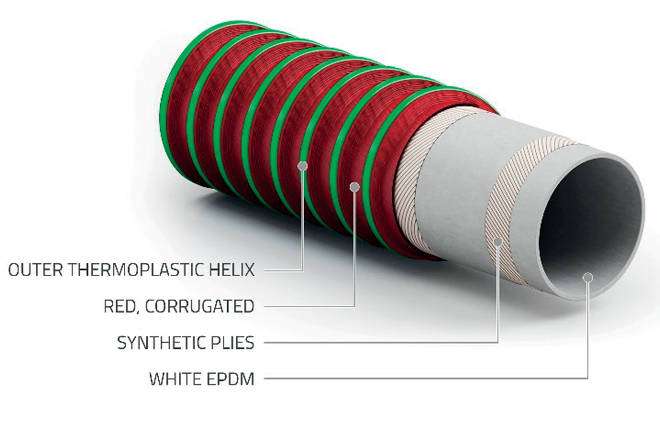

Spiraltech Epdm


Light and flexible lorry collecting hose suitable for a wide range of food products. Not recommended for fatty food products and oil.


DESCRIPTION
  • Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies
  • Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
spiraltech-epdm
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 - - 0,9 13 10 150 30 450 1,27 0,86 80 3,15
51 2,00 - - 0,9 13 10 150 30 450 1,67 1,12 100 3,94
63,5 2,50 - - 0,8 11,5 10 150 30 450 2,03 1,36 130 5,12
76 3,00 - - 0,8 11,5 10 150 30 450 2,38 1,59 150 5,91
102 4,00 - - 0,7 10 10 150 30 450 3,11 2,09 200 7,87

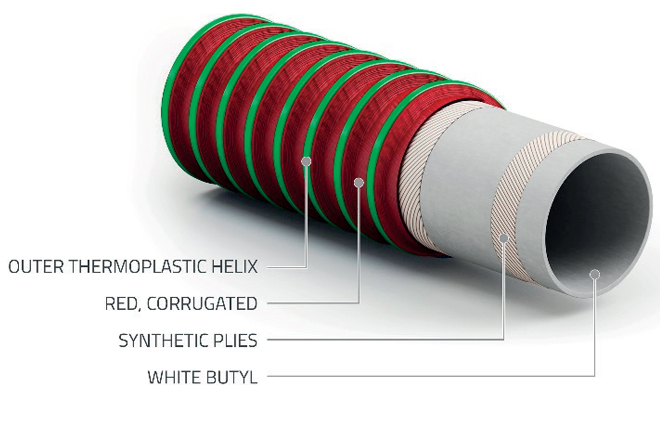

Spiraltech Butyl


spiraltech-butyl
request-quote

Premium grade low permeation light and flexible lorry collecting hose suitable for a wide range of food products. Recommended for wine and spirits.


DESCRIPTION
  • Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies
  • Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 - - 0,9 13 10 150 30 450 1,23 0,82 80 3,15
51 2,00 - - 0,9 13 10 150 30 450 1,62 1,09 100 3,94
63,5 2,50 - - 0,8 11,5 10 150 30 450 1,97 1,32 130 5,12
76 3,00 - - 0,8 11,5 10 150 30 450 2,57 1,72 150 5,91
102 4,00 - - 0,7 10 10 150 30 450 3,37 2,26 200 7,87
