Glidetech Food Hoses




Glidetech Butyl


Premium grade low permeation extra flexible suction and delivery hose suitable for wine and spirits.


DESCRIPTION
  • Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ozone, ageing, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® BUTYL

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances
glidetech-butyl
request-quote

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,82 0,55 70 2,76
38 1,50 51,5 2,03 0,9 13 10 150 30 450 1,23 0,82 80 3,15
51 2,00 66 2,60 0,9 13 10 150 30 450 1,90 1,27 100 3,94
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,30 1,54 130 5,12
76 3,00 92 3,62 0,9 13 10 150 30 450 2,90 1,94 150 5,91
102 4,00 118 4,65 0,9 13 10 150 30 450 3,78 2,53 250 9,84



Glidetech Nr


glidetech-nr
request-quote

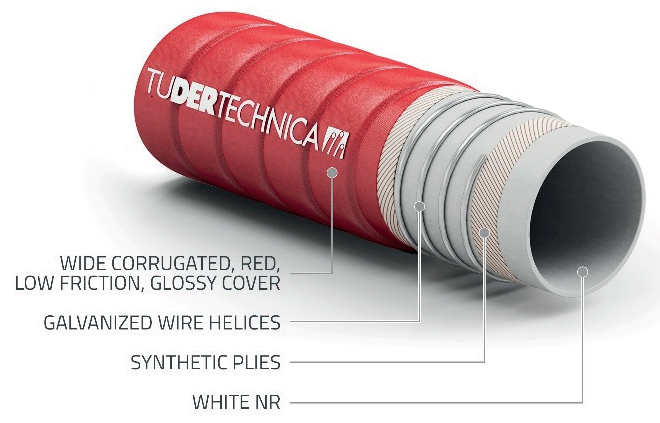

Extra flexible suction and delivery hose suitable for milk, milk byproducts, wine and non-fatty food products.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover :wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® NR

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,82 0,55 70 2,76
38 1,50 51,5 2,03 0,9 13 10 150 30 450 1,23 0,82 80 3,15
51 2,00 66 2,60 0,9 13 10 150 30 450 1,90 1,27 100 3,94
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,30 1,54 130 5,12
76 3,00 92 3,62 0,9 13 10 150 30 450 2,90 1,94 150 5,91
102 4,00 118 4,65 0,9 13 10 150 30 450 3,78 2,53 250 9,84



Glidetech Nitrile

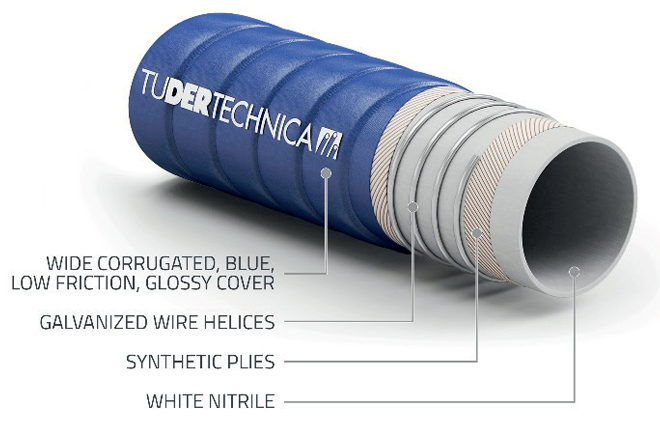

Extra flexible suction and delivery hose suitable for fatty and nonfatty food products.


DESCRIPTION
  • Tube : NBR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, blue, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® NITRILE

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
glidetech-nitrile
request-quote

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,81 0,54 70 2,76
38 1,50 51,5 2,03 0,9 13 10 150 30 450 1,23 0,82 80 3,15
51 2,00 66 2,60 0,9 13 10 150 30 450 1,90 1,27 100 3,94
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,31 1,55 130 5,12
76 3,00 92 3,62 0,9 13 10 150 30 450 2,91 1,95 150 5,91
102 4,00 118 4,65 0,9 13 10 150 30 450 3,80 2,55 250 9,84



Glidetech EPDM


glidetech-epdm
request-quote

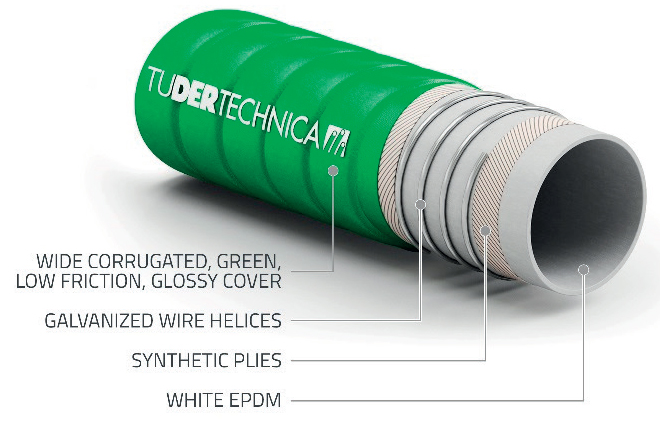

Extra flexible suction and delivery hose suitable for a wide range of food products. Not recommended for fatty food products and oil.


DESCRIPTION
  • Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, green, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® EPDM

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances
Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,79 0,53 70 2,76
38 1,50 51,5 2,03 0,9 13 10 150 30 450 1,19 0,80 80 3,15
51 2,00 66 2,60 0,9 13 10 150 30 450 1,85 1,24 100 3,94
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,24 1,50 130 5,12
76 3,00 92 3,62 0,9 13 10 150 30 450 2,83 1,90 150 5,91
102 4,00 118 4,65 0,9 13 10 150 30 450 3,72 2,49 250 9,84
