Dry Ice Hoses



Tusil Cryo


Delivery of dry ice and extremely low temperature air. Temperature range: -85°C / +200°C ( -121°F / +392°F ).

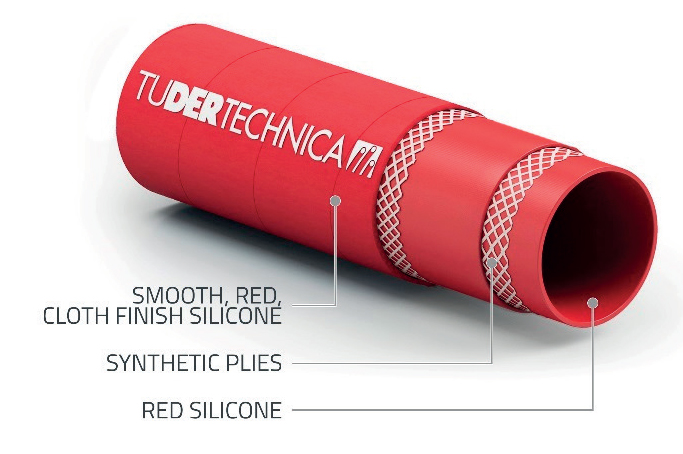

DESCRIPTION
  • Tube : silicone, red
  • Reinforcement : synthetic plies, a/s copper wire to discharge static electricity
  • Cover : smooth, red, silicone, abrasion, ageing, ozone and paraffin oil resistant, cloth finish, on request glossy cover
  • Marking : TUDERTECHNICA TUSIL® CRYO

TECHNICAL CHARACTERISTICS
  • Temperature range : -85°C / +200°C ( -121°F / +392°F )
  • Norm : ISO 1307 for dimensional tolerances

request-quote
tusil-cryo

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
16 0,63 27 1,06 - - 14 210 42 630 0,47 0,31 - -
19 0,75 30 1,18 - - 13 195 39 585 0,53 0,35 - -
22 0,87 32 1,26 - - 12 180 36 540 0,52 0,35 - -
25 1,00 35 1,38 - - 11 165 33 495 0,57 0,38 - -
28 1,10 38 1,50 - - 10 150 30 450 0,63 0,42 - -
