Brewery, Cellar & Distillery Hoses

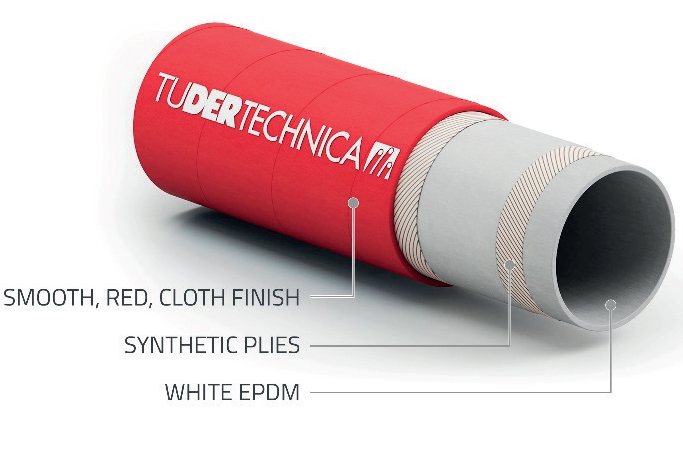

Brewery EPDM D


Delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA BREWERY EPDM

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances
brewery-epdm-d
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,6 8,5 16 250 48 750 0,75 0,50 150 5,91
32 1,25 48 1,89 0,5 7,25 16 250 48 750 1,24 0,83 210 8,27
38 1,50 56 2,20 0,5 7,25 16 250 48 750 1,79 1,20 260 10,24
50 1,97 70 2,76 0,4 6 16 250 48 750 2,48 1,66 350 13.78
51 2,00 70 2,76 0,4 6 16 250 48 750 2,35 1,57 350 13,78
63,5 2,50 89 3,50 0,4 6 16 250 48 750 3,88 2,60 470 18,50
65 2,56 89 3,50 0,4 6 16 250 48 750 3,75 2,51 470 18,50
75 2,95 99 3,90 0,3 4,5 16 250 48 750 4,29 2,87 580 22,83
76 3,00 99 3,90 0,3 4,5 16 250 48 750 4,10 2,75 580 22,83
100 3,94 130 5,12 0,2 3 16 250 48 750 7,06 4,73 800 31,50
102 4,00 130 5,12 0,2 3 16 250 48 750 6,57 4,40 800 31,50



Brewery EPDM


brewery-epdm
request-quote

Suction and delivery hose suitable for beer and a wide range of nonfatty food products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA BREWERY EPDM

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 53 2,09 0,9 13 16 250 48 750 1,48 0,99 155 6,10
50 1,97 66 2,60 0,9 13 16 250 48 750 2,05 1,37 215 8,46
51 2,00 66 2,60 0,9 13 16 250 48 750 1,92 1,29 215 8,46
63,5 2,50 81 3,19 0,9 13 16 250 48 750 2,98 2,00 275 10,83
65 2,56 81 3,19 0,9 13 16 250 48 750 2,84 1,90 275 10,83
75 2,95 94 3,70 0,9 13 16 250 48 750 4,06 2,72 330 12,99
76 3,00 94 3,70 0,9 13 16 250 48 750 3,87 2,59 330 12,99
100 3,94 120 4,72 0,9 13 16 250 48 750 5,38 3,60 450 17,72
102 4,00 120 4,72 0,9 13 16 250 48 750 5,19 3,48 450 17,72

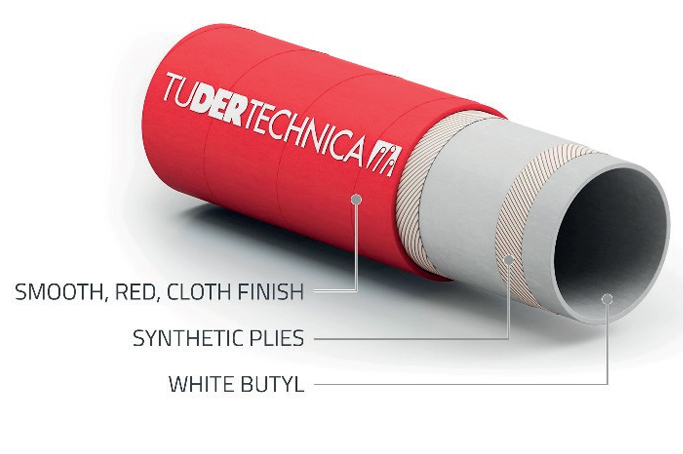

Brewery Butyl D


Premium grade low permeation delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA BREWERY BUTYL

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances
brewery-butyl-d
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,6 8,5 16 250 48 750 0,76 0,51 150 5,91
32 1,25 48 1,89 0,5 7,25 16 250 48 750 1,27 0,85 210 8,27
38 1,50 56 2,20 0,5 7,25 16 250 48 750 1,83 1,23 260 10,24
50 1,97 70 2,76 0,4 6 16 250 48 750 2,53 1,70 350 13,78
51 2,00 70 2,76 0,4 6 16 250 48 750 2,41 1,61 350 13,78
63,5 2,50 89 3,50 0,4 6 16 250 48 750 3,95 2,65 470 18,50
65 2,56 89 3,50 0,4 6 16 250 48 750 3,82 2,56 470 18,50
75 2,95 99 3,90 0,3 4,5 16 250 48 750 4,37 2,93 580 22,83
76 3,00 99 3,90 0,3 4,5 16 250 48 750 4,18 2,80 580 22,83
100 3,94 130 5,12 0,2 3 16 250 48 750 7,17 4,80 800 31,50
102 4,00 130 5,12 0,2 3 16 250 48 750 6,68 4,48 800 31,50

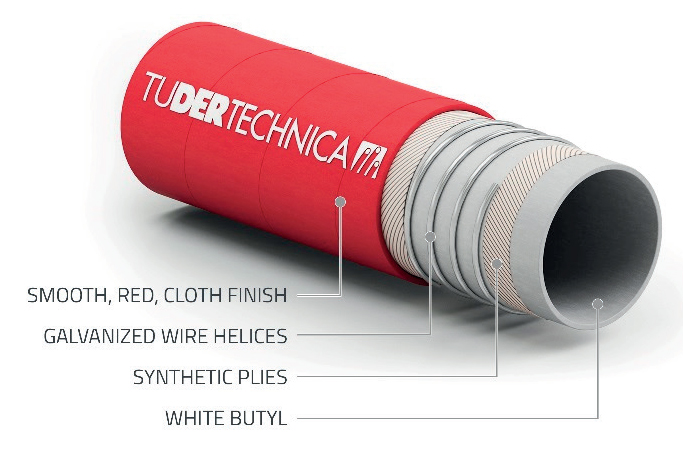

Brewery Butyl


brewery-butyl
request-quote

Premium grade low permeation suction and delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA BREWERY BUTYL

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 53 2,09 0,9 13 16 250 48 750 1,51 1,01 155 6,10
50 1,97 66 2,60 0,9 13 16 250 48 750 2,09 1,40 215 8,46
51 2,00 66 2,60 0,9 13 16 250 48 750 1,96 1,31 215 8,46
63,5 2,50 81 3,19 0,9 13 16 250 48 750 3,02 2,02 275 10,83
65 2,56 81 3,19 0,9 13 16 250 48 750 2,88 1,93 275 10,83
75 2,95 94 3,70 0,9 13 16 250 48 750 4,11 2,75 330 12,99
76 3,00 94 3,70 0,9 13 16 250 48 750 3,92 2,63 330 12,99
100 3,94 120 4,72 0,9 13 16 250 48 750 5,45 3,65 450 17,72
102 4,00 120 4,72 0,9 13 16 250 48 750 5,26 3,52 450 17,72

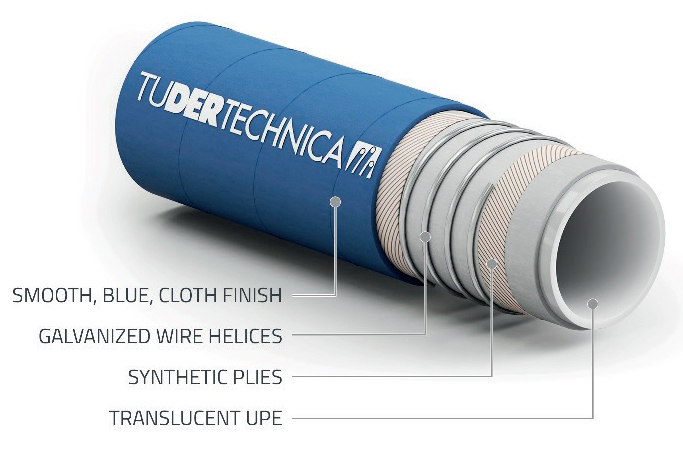

Brewery UPE


Suction and delivery hose suitable for beer, alcohol concentration up to 96% and a wide range of food products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA BREWERY UPE

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F )
  • Norm : ISO 1307 for dimensional tolerances
brewery-upe
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 51 2,00 0,9 13 16 250 48 750 1,34 0,90 240 9,45
50 1,97 64 2,52 0,9 13 16 250 48 750 1,84 1,23 330 12,99
51 2,00 64 2,52 0,9 13 16 250 48 750 1,72 1,15 330 12,99
63,5 2,50 81 3,19 0,9 13 16 250 48 750 3,06 2,05 415 16,34
65 2,56 81 3,19 0,9 13 16 250 48 750 2,92 1,96 415 16,34
75 2,95 93 3,66 0,9 13 16 250 48 750 3,70 2,48 500 19,69
76 3,00 93 3,66 0,9 13 16 250 48 750 3,50 2,35 500 19,69
100 3,94 119 4,69 0,9 13 16 250 48 750 5,12 3,43 675 26,57
102 4,00 119 4,69 0,9 13 16 250 48 750 4,78 3,20 675 26,57

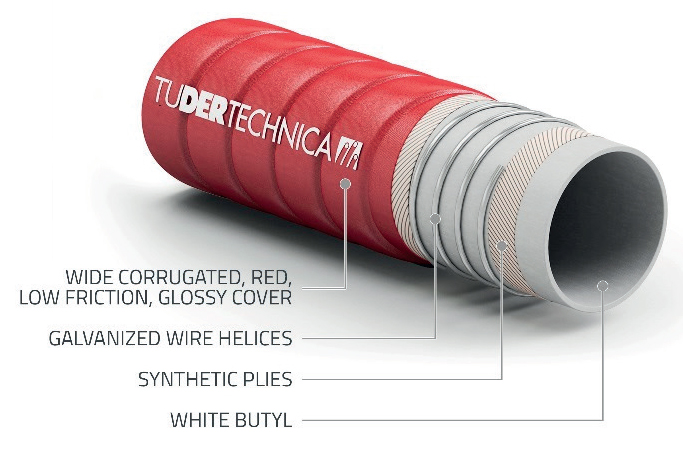

Glidetech Brewery HD


glidetech-brewery-hd
request-quote

Premium grade low permeation extra flexible suction and delivery hose suitable for beer and a wide range of non-fatty food products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ozone, ageing, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® BREWERY HD

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 38 1,50 0,9 13 16 250 60 900 0,91 0,61 105 4,13
38 1,50 52,5 2,07 0,9 13 16 250 60 900 1,38 0,92 120 4,72
51 2,00 67 2,64 0,9 13 16 250 60 900 2,21 1,48 150 5,91
63,5 2,50 80,5 3,17 0,9 13 16 250 60 900 2,79 1,87 195 7,68
76 3,00 94 3,70 0,9 13 16 250 60 900 3,51 2,35 225 8,86
102 4,00 120 4,72 0,9 13 16 250 60 900 4,57 3,06 375 14,76



Glidetech Vineyard


Extra flexible suction and delivery hose suitable for wine and vinification by-products.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® VINEYARD

TECHNICAL CHARACTERISTICS
  • Temperature range : -60°C / +200°C ( -76°F / +392°F )
  • Norm : ISO 1307 for dimensional tolerances
glidetech-vineyard
request-quote

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,82 0,55 70 2,76
38 1,50 51,5 2,03 0,9 13 10 150 30 450 1,23 0,82 80 3,15
51 2,00 66 2,60 0,9 13 10 150 30 450 1,90 1,27 100 3,94
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,30 1,54 130 5,12
76 3,00 92 3,62 0,9 13 10 150 30 450 2,90 1,94 150 5,91
102 4,00 118 4,65 0,9 13 10 150 30 450 3,78 2,53 250 9,84

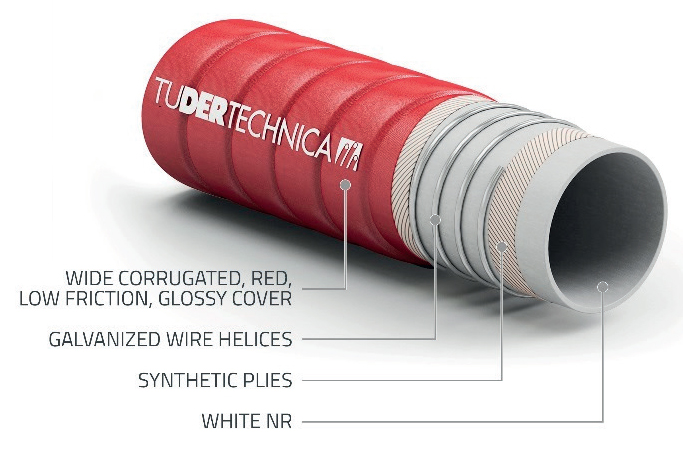

Glidetech Vineyard Hd


glidetech-vineyard-hd
request-quote

Extra flexible suction and delivery hose suitable for wine and vinification by-products with an improved resistance to higher pressure.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, red, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® VINEYARD HD

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 38 1,50 0,9 13 16 250 60 900 0,91 0,61 105 4,13
38 1,50 52,5 2,07 0,9 13 16 250 60 900 1,41 0,94 120 4,72
51 2,00 67 2,64 0,9 13 16 250 60 900 2,24 1,50 150 5,91
63,5 2,50 80,5 3,17 0,9 13 16 250 60 900 2,82 1,89 195 7,68
76 3,00 94 3,70 0,9 13 16 250 60 900 3,55 2,38 225 8,86
102 4,00 120 4,72 0,9 13 16 250 60 900 4,44 2,97 375 14,76

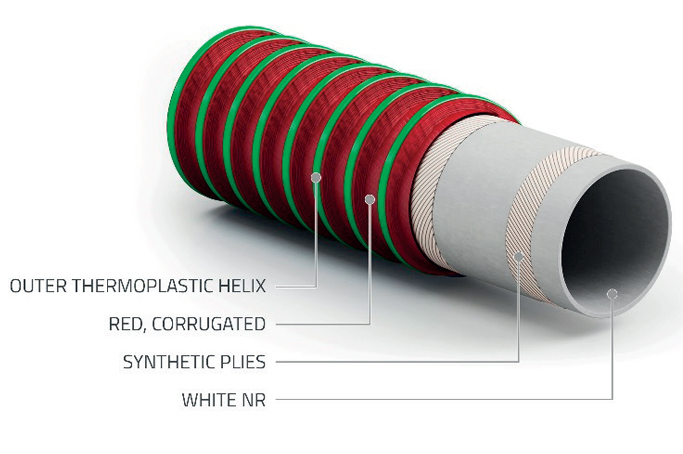

Spiraltech Vineyard


Light and flexible lorry collecting hose suitable for wine and vinification by-products.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies
  • Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
spiraltech-vineyard
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 - - 0,9 13 10 150 30 450 1,21 0,81 80 3,15
51 2,00 - - 0,9 13 10 150 30 450 1,59 1,07 100 3,94
63,5 2,50 - - 0,8 11,5 10 150 30 450 1,93 1,29 130 5,12
76 3,00 - - 0,8 11,5 10 150 30 450 2,49 1,67 150 5,91
102 4,00 - - 0,7 10 10 150 30 450 3,26 2,18 200 7,87

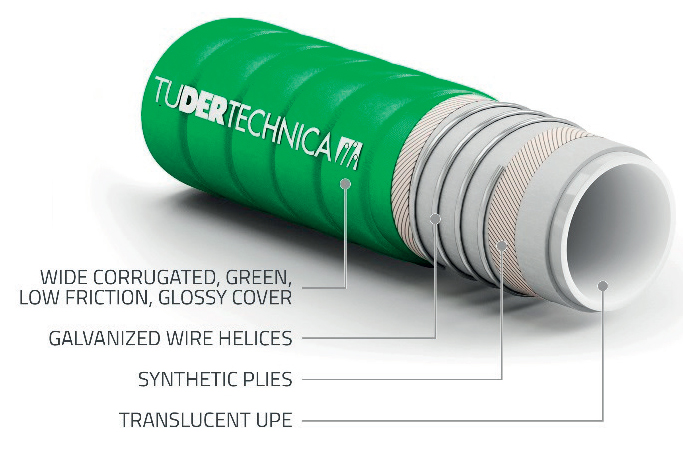

Glidetech Distillery


glidetech-distillery
request-quote

Extra flexible suction and delivery hose suitable for distilled and distillation by-products with alcohol concentration up to 96%.


DESCRIPTION
  • Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : wide corrugated, green, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
  • Marking : TUDERTECHNICA GLIDETECH® DISTILLERY

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Th. outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 30 450 0,80 0,54 100 3,94
38 1,50 50 1,97 0,9 13 10 150 30 450 1,14 0,76 150 5,91
51 2,00 65 2,56 0,9 13 10 150 30 450 1,81 1,21 200 7,87
63,5 2,50 77,5 3,05 0,9 13 10 150 30 450 2,19 1,47 260 10,24
76 3,00 91 3,58 0,9 13 10 150 30 450 2,81 1,88 350 13,78
102 4,00 117 4,61 0,9 13 10 150 30 450 3,67 2,46 500 19,69

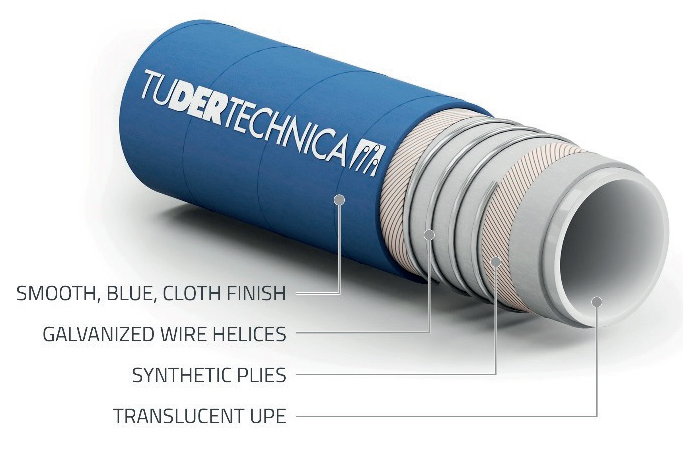

Tualcomaster


Light and flexible suction and delivery hose suitable for alcohol concentration up to 96%. Can be used for fatty and non-fatty food products.


DESCRIPTION
  • Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
  • Reinforcement : synthetic plies, galvanized wire helices
  • Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA TUALCOMASTER

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F )
  • Norm : ISO 1307 for dimensional tolerances
Tualcomaster
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 29 1,14 0,9 13 6 90 18 270 0,61 0,41 60 2,36
25 1,00 35 1,38 0,9 13 6 90 18 270 0,76 0,51 85 3,35
32 1,25 43 1,69 0,9 13 6 90 18 270 0,98 0,66 115 4,53
38 1,50 49 1,93 0,9 13 6 90 18 270 1,14 0,76 150 5,91
51 2,00 62 2,44 0,9 13 6 90 18 270 1,52 1,02 210 8,27
63,5 2,50 76,5 3,01 0,9 13 6 90 18 270 2,29 1,53 265 10,43
76 3,00 89 3,50 0,9 13 6 90 18 270 2,85 1,91 320 12,60
102 4,00 115 4,53 0,9 13 6 90 18 270 3,74 2,51 430 16,93
